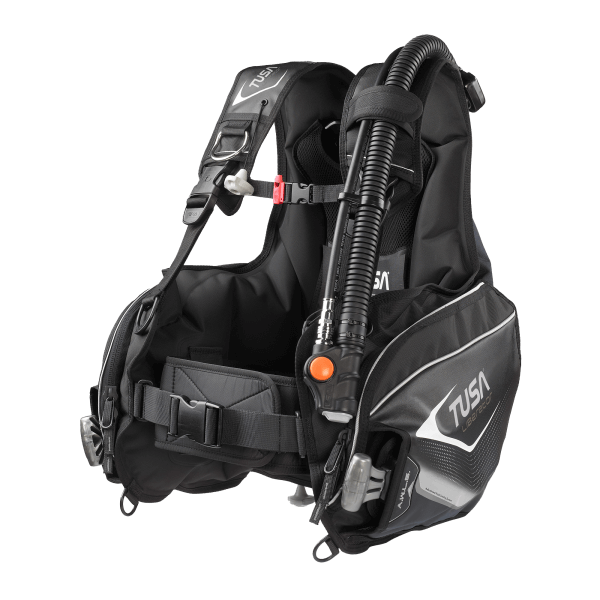

Liberator BCD

Description

The updated, next-generation Liberator BC-0103 buoyancy compensator is a durable, wrap-around jacket style BC. The Liberator comes standard with TUSA’s ever-reliable tilt valve inflator. TUSA’s new Advanced Weight Loading System III provides hassle-free weight loading. The Ultimate Stabilizing Harness will ensure a comfortable and secure diving experience. Advanced Weight Loading System III (AWLS) allows diver to insert weights into weight-cartridges & loading them easily into the front of the BC jacket. Weight distribution to the shoulder area, weighted-down feeling that is associated with weight belts is eliminated. Weight-Cartridges can accommodate from 8 lbs. (3.63 kg) of weight in each cartridge.

Newly-Designed Ergonomic Handle Grip
Quick-Lock Releases Weight Cartridges
Insert Weights into Weight-Cartridges, Easily Load into BCD
Weight Distribution to the Shoulder Area
Releasable Weight Capacity; 8 lbs. (3.63 kg) Each Cartridge
TUSA’s Ultimate Stabilizing Harness (U.S.H.):
Eliminates Tank-Roll
Securely-Holds Cylinder in Place with Optimally-Placed Rails
Brings Tank-Closer to Body, Increasing Tank Control
TUSA’s Patented O.P.E.V. Quick Inflate/Deflate System
3/8″ Threaded Low Pressure Quick-Disconnect Hose
2-Dump/Overpressure Relief Valves
Heavy-Duty 500-Cordura and 420D Nylon for Superior Strength and Durability
Internal Urethane Lamination for Air Tight Integrity
2-Zippered Pockets for Accessory Items
1-Stainless-Steel and 5-Resin D-Rings
Adjustable Sternum Strap
Sternum Strap Buckle: Equipped with Integrated Safety Whistle
Torso-Adjustable Shoulder Straps
Adjustable Waist Strap with Cummerbund
All Straps w/ Squeeze-Style” Side-Release Buckles for Easy Donning and Doffing
Lift Capacities:
X-Small; 18 lbs. (8.2 kg)
Small; 22.5 lbs. (10.2 kg)
Medium; 31.5 lbs. (14.3 kg)
Large; 38.2 lbs. (17.3 kg)
X-Large; 46.1 lbs. (20.9 kg)
Dry Weight: 7.1 lbs. (3.2 kg) to 7.7 lbs. (3.5 kg), Size Dependent
Owner’s Manual

Dimensions:

External Fabric: 500D CORDURA*
Internal Fabric: 420D Nylon
Dump Valves: 3 (O.P.E.V. +2)
D-Rings: 1 stainless, 4 resin
*CORDURA is a registered trademark of INVISTA Corporation in the United States.
